- Choice of 6 colors
- 18" x 17" or 20"x18", 5-point swivel seat with latch release
- Increased 300 lb. weight capacity
- Faster speed - up to 3.7 mph
- Larger, 18 amp batteries
- Improved agility - longer wheel base; wider stance; compact turning radius 25.4"
- Dual swing-away, under seat storage bins
- Larger, height & width adjustable armrests
- Larger footplate

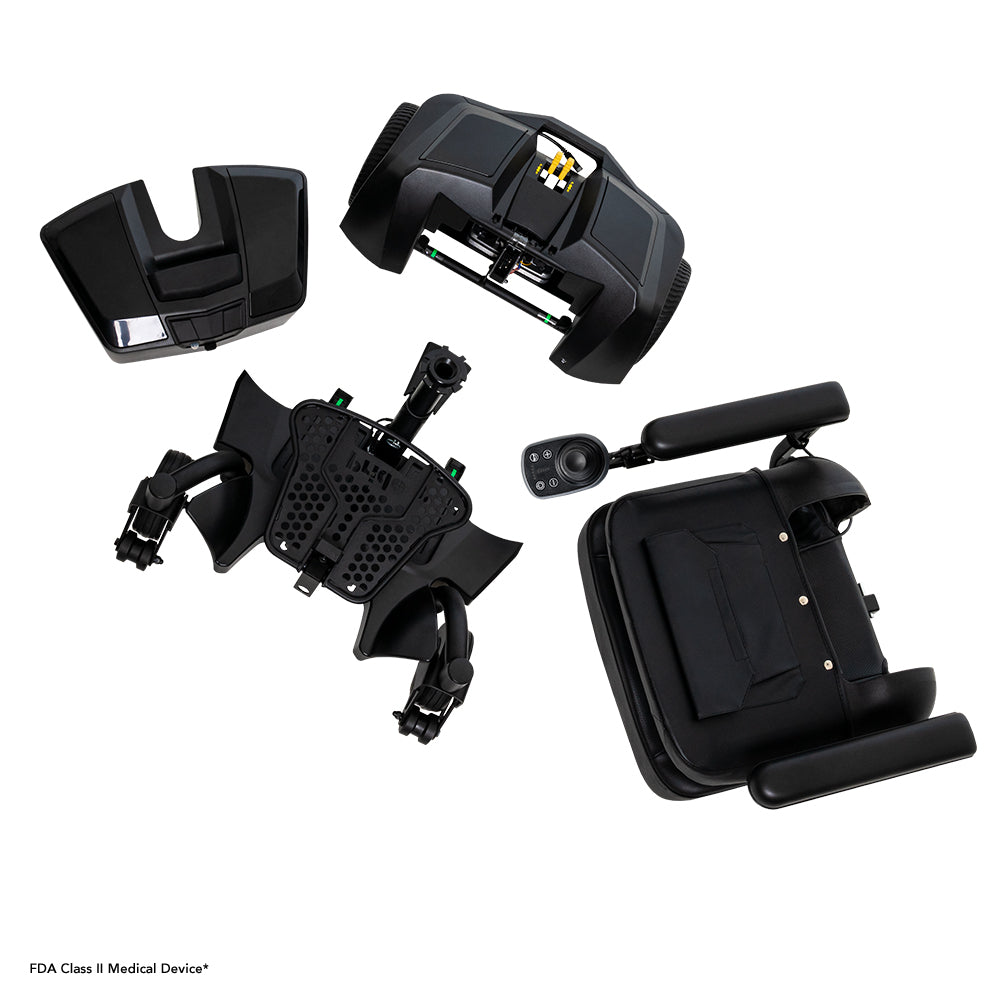

- One hand feather-touch disassembly
- 60" lap belt
* Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.*
- Model Go Chair
- Weight Capacity 300 lbs.
- Turning Radius1 25.5"
- Width1 22.5"
- Length1,2 28.5" without front rigging
- 33" with front rigging
- Maximum Speed3 up to 3.7 mph
- Ground Clearance1 1.8" at motor, 1.7" at anti-tip, 2.7" at foot bracket
- Front Wheels 6" solid casters
- Drive Wheels 9" solid
- Rear Wheels 3" solid anti-tips
- Standard Electronics 40 amp, PG GC3 (non-programmable)
- Battery Size (2 required) 18 Ah, 12 V, deep-cycle
- Standard Battery Charger Off-board, 2 amp
- Per-Charge Range3,6 Up to 8.7 miles (std), 10.9 miles with extended range
- Battery Weight5 14 lbs. each
- Weight of Heaviest Piece4 36 lbs. (rear)
- Standard Seat Weight 30 lbs.
- Standard Seat Size Compact, Foldable (18"x17")
- Medicare Code Coverage K0899 Power Mobility Device, not coded by DME PDAC or does not meet criteria
- Warranty 5-year limited on frame;
- 13-month limited on electronics;
- 13-month limited on drive motors
Notes:
1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2 Without front riggings.
3 Varies with user weight, terrain, battery type, battery condition and tire pressure.
4 Does not include seat or battery weights.
5 Battery weight may vary based on manufacturer.
6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
